IC-LL990500-70D140D

IC-LL990500-70D140D

Key Features

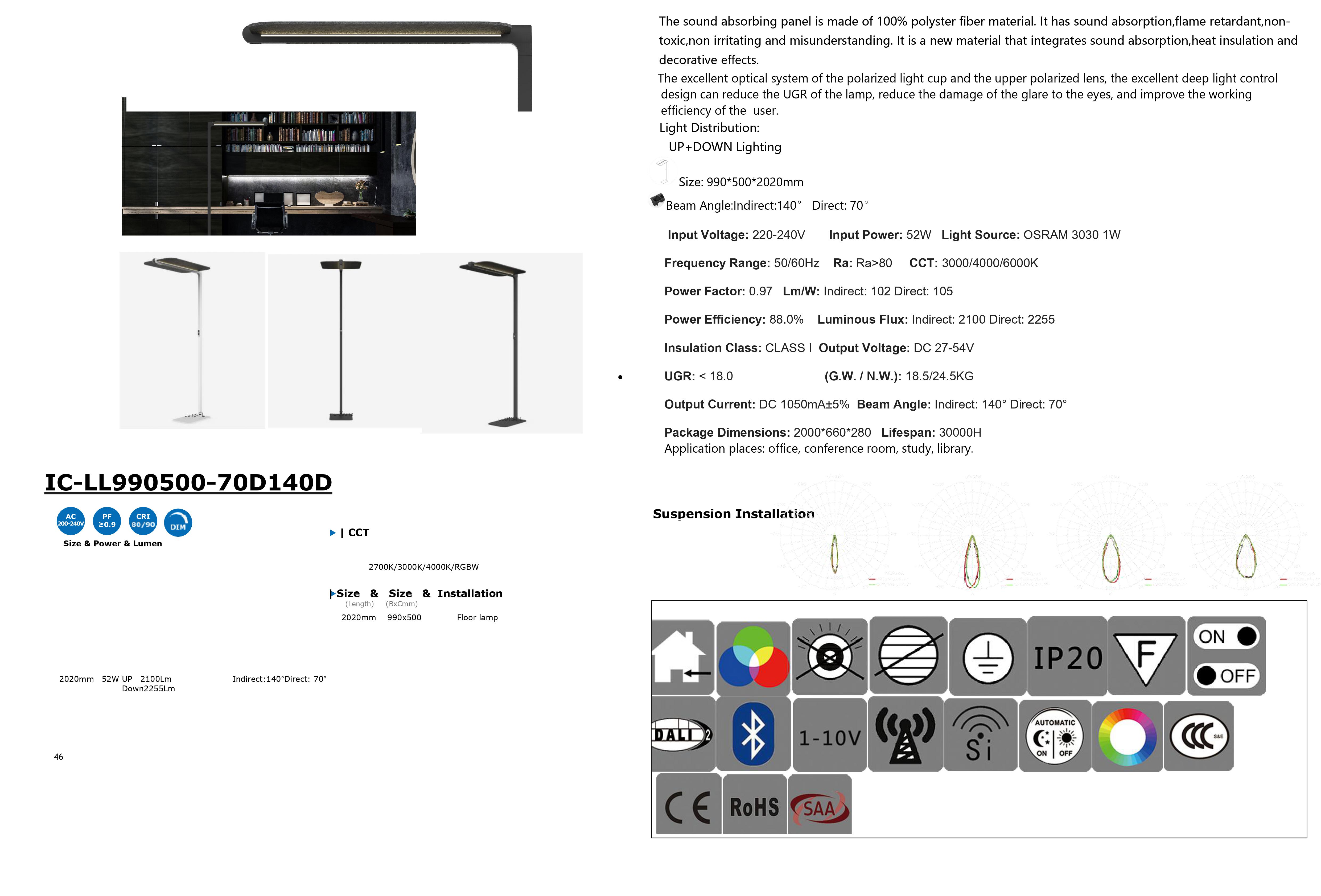

Mechanical Drawing

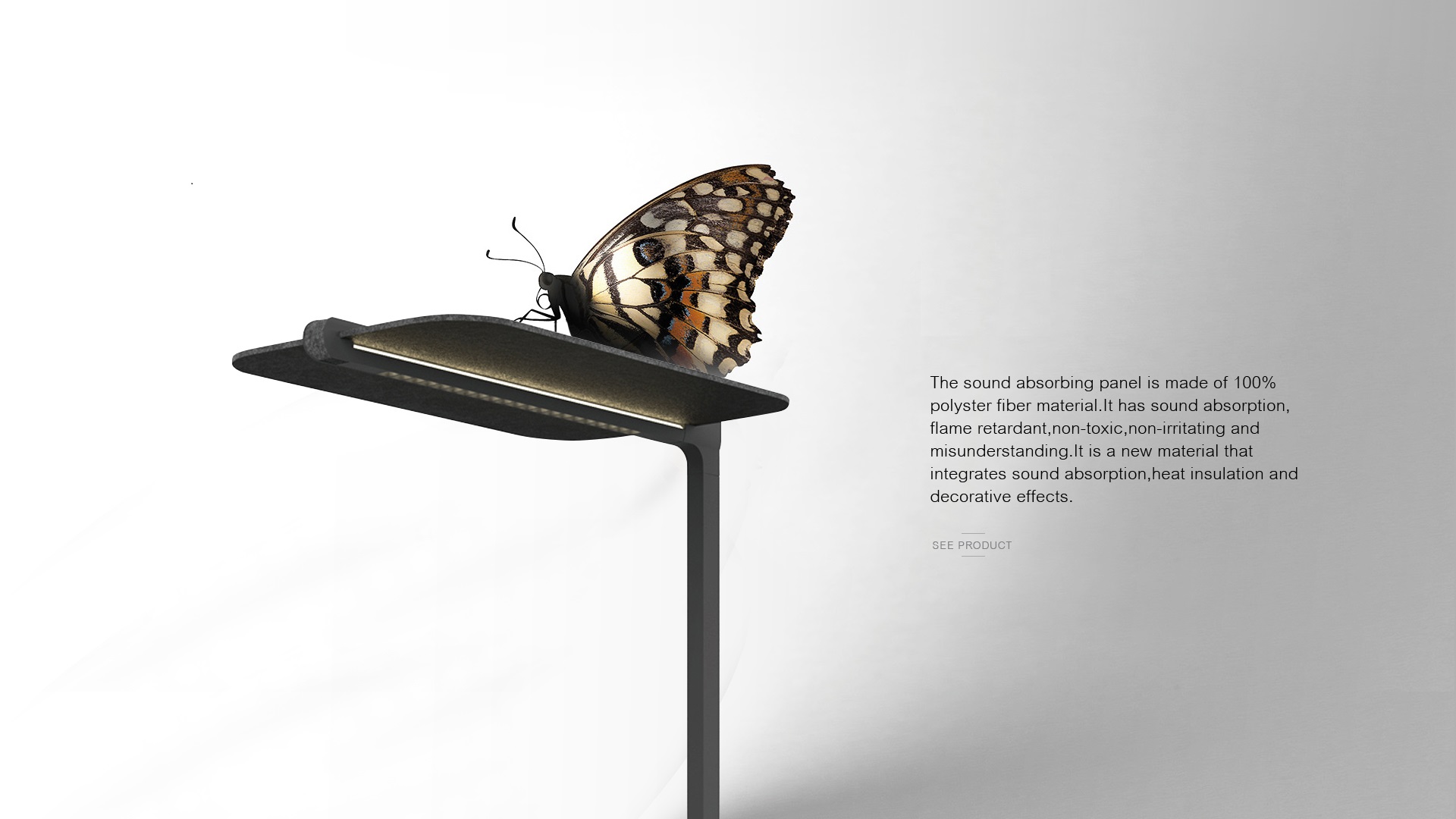

The sound absorbing panel is made of 100% polyster fiber material. It has sound absorption,flame retardant,non-toxic,non irritating and misunderstanding. It is a new material that integrates sound absorption,heat insulation and decorative effects.

The excellent optical system of the polarized light cup and the upper polarized lens, the excellent deep light control design can reduce the UGR of the lamp, reduce the damage of the glare to the eyes, and improve the working efficiency of the user.

Light Distribution:

UP+DOWN Lighting

Size: 990*500*2020mm

Beam Angle:Indirect:140° Direct: 70°

Download Documentation

Overall

Highlight

· Input Voltage: 220-240V Input Power: 52W Light Source: OSRAM 3030 1W

· Frequency Range: 50/60Hz Ra: Ra>80 CCT: 3000/4000/6000K

· Power Factor: 0.97 Lm/W: Indirect: 102 Direct: 105

· Power Efficiency: 88.0% Luminous Flux: Indirect: 2100 Direct: 2255

· Insulation Class: CLASS I Output Voltage: DC 27-54V

· UGR: < 18.0 (G.W. / N.W.): 18.5/24.5KG

· Output Current: DC 1050mA±5% Beam Angle: Indirect: 140° Direct: 70°

· Package Dimensions: 2000*660*280 Lifespan: 30000H

Application places: office, conference room, study, library.
