Catalog#Type   Project

Prepared ByDate   Comments

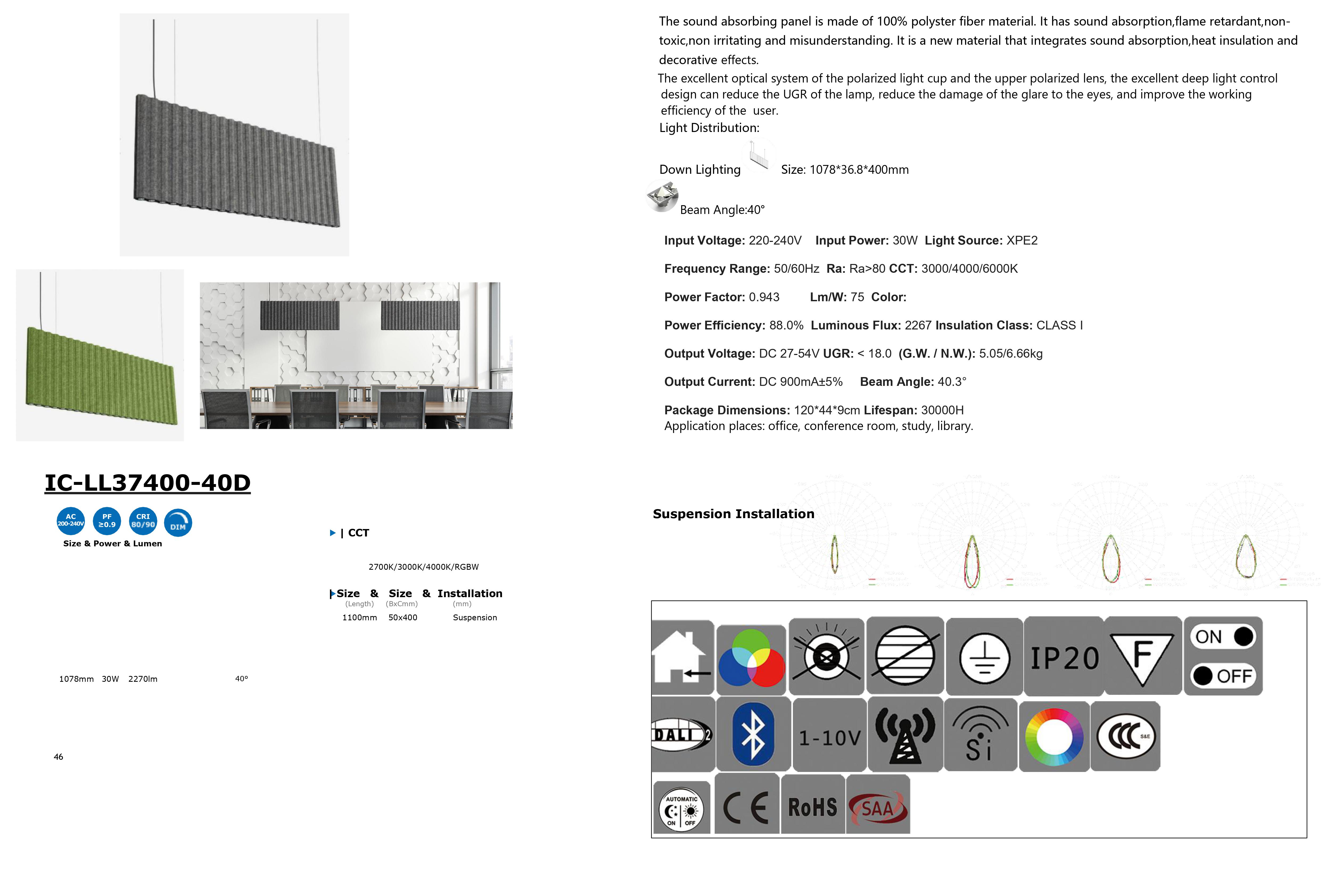

IC-LL37400-40D



The sound absorbing panel is made of 100% polyster fiber material. It has sound absorption,flame retardant,non-toxic,non irritating and misunderstanding. It is a new material that integrates sound absorption,heat insulation and  decorative effects.
          The excellent optical system of the polarized light cup and the upper polarized lens, the excellent deep light control design can reduce the UGR of the lamp, reduce the damage of the glare to the eyes, and improve the working efficiency of the  user.

     Down Lighting Size: 1078*36.8*400mm

      Beam Angle:40°
Download Documentation

Overall

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download

Highlight
· Input Voltage: 220-240V    Input Power: 30W  Light Source: XPE2
· Frequency Range: 50/60Hz  Ra: Ra>80 CCT: 3000/4000/6000K
· Power Factor: 0.943         Lm/W: 75  Color:
· Power Efficiency: 88.0%  Luminous Flux: 2267 Insulation Class: CLASS I
· Output Voltage: DC 27-54V UGR: < 18.0  (G.W. / N.W.): 5.05/6.66kg
· Output Current: DC 900mA±5%     Beam Angle: 40.3°
· Package Dimensions: 120*44*9cm Lifespan: 30000H
 Application places: office, conference room, study, library.
