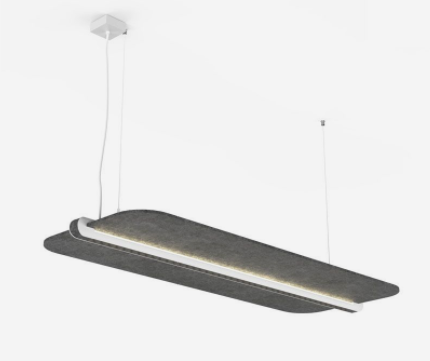

IC-LL50057-70D140D



The sound absorbing panel is made of 100% polyster fiber material. It has sound absorption,flame retardant,non-toxic,non irritating and misunderstanding. It is a new material that integrates sound absorption,heat insulation and  decorative effects.
          The excellent optical system of the polarized light cup and the upper polarized lens, the excellent deep light control design can reduce the UGR of the lamp, reduce the damage of the glare to the eyes, and improve the working efficiency of the  user.
Light Distribution:
UP+DOWN Lighting
          Size: 1320*500*57
    Beam Angle:Indirect:140° Direct: 70°

Download Documentation

Overall

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download

Highlight
· nput Power: 60W   Input Voltage: 220-240V   Light Source: OSRAM 3030 1W
· Frequency Range: 50/60Hz       Ra: Ra>80        CCT: 3000/4000/6000K
· Power Factor: 0.97   Lm/W: Indirect: 102 Direct: 100 Color: RGBW
· Power Efficiency: 88.0%     Luminous Flux: Indirect: 2325 Direct: 2450
· Insulation Class: CLASS I   Output Voltage: DC 27-54V UGR: < 18.0
· (G.W. / N.W.): 5.36/6.86KG  Output Current: DC 1200mA±5%  Beam Angle: Indirect:140° Direct: 70°
· Package Dimensions: 55*10.5*137   Lifespan: 30000H
 Application places: office, conference room, study, library.
