Anti glare
Retrofit
Catalog#Type   Project

Prepared ByDate   Comments

ICL-LPL-IP50-600mm900mm1200mm1500mm-SMD2835-28W36W45W60W



1.100 lm/W , a direct replacement for T8(2*58W) ,T5(2*54W) ,50% energy saving .
2.120D beam available for optimal lighting effects
3.High impact PC diffuser with internal linear prisms ensures uniformity of light
4.Extruded aluminum housing , anodized ,corrosion resistant
5.Injection-molded PC end caps
6.Integrated LED light engine eliminates the need for relamping
7.Fixtures can be connected for long continuous runs
8.Emergency and occupancy sensing versions are available
9.5-year warranty offers complete peace of mind
Download Documentation

Overall

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download
ICL-LPL-IP50-600mm-SMD2835-28W28W2,800lm600mm 120D 90-305V AC,50/69Hz IP50
ICL-LPL-IP50-900mm-SMD2835-36W36W3,600lm900mm 120D 90-305V AC,50/60Hz IP50
ICL-LPL-IP50-1200mm-SMD2835-45W45W4,500lm1200mm 120D 305V AC,50/60Hz IP50
ICL-LPL-IP50-1500mm-SMD2835-60W60W6,000lm1500mm 120D 305V AC,50/60Hz IP50

Highlight

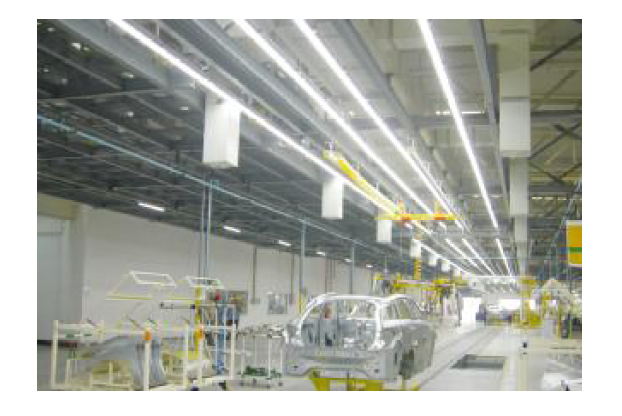

1.Production line

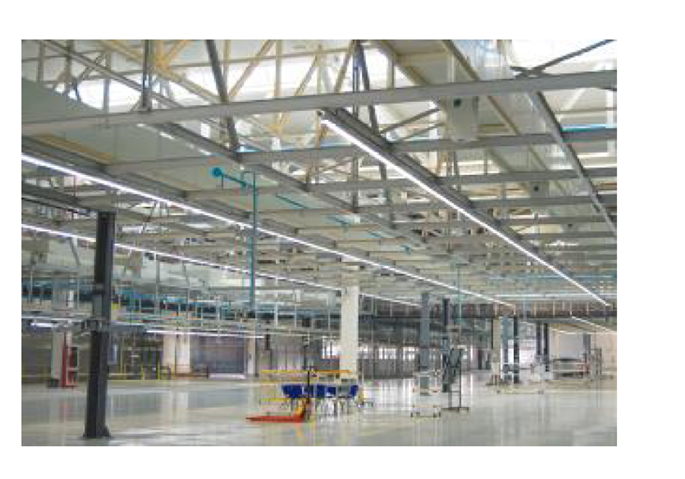

2.Warehouses
3.Car parks
4.Subways
5.Shopping malls

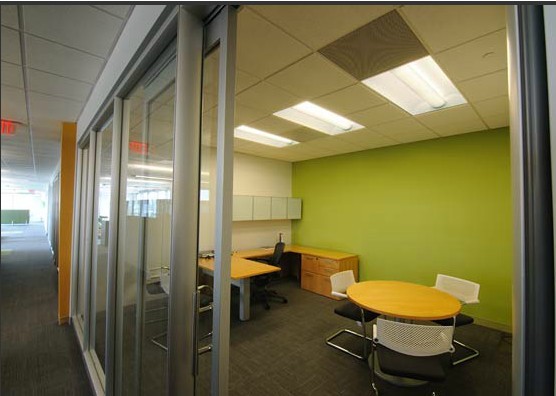

Panel light for offices
