Catalog#Type   Project

Prepared ByDate   Comments

SS-LL-60-90D-50W-C



Structure and characteristics

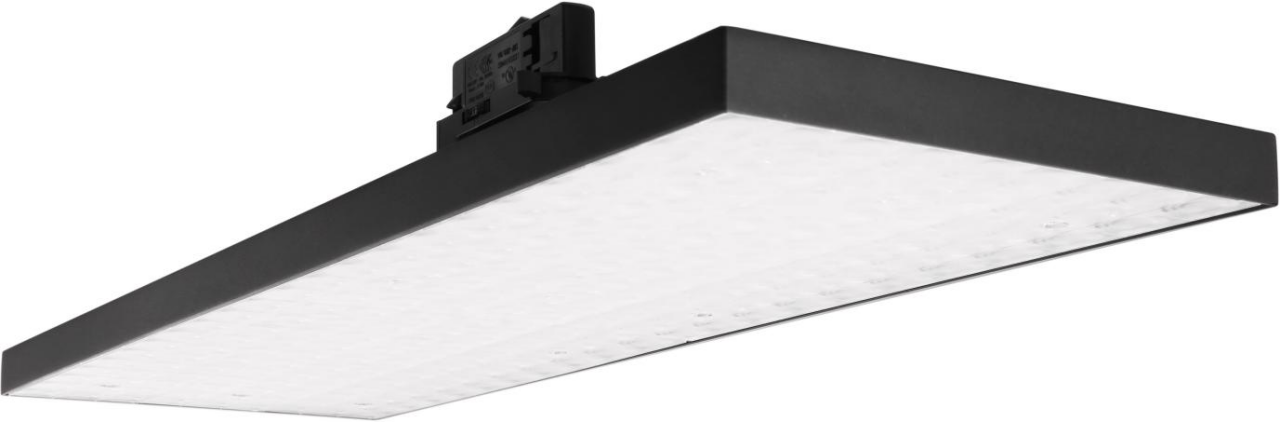

Unique grille panel integrated with track system. it is specially designed for supermarket decorations with to replace traditional linear lights and high bay.

High power bridgelux LED chip,160lm/W, CRI80 with lighting color: cool white, neutral white and warm white.
Simple and elegant aluminum alloy frame with
Material:Aluminum, plastic Luminous color :4000 K

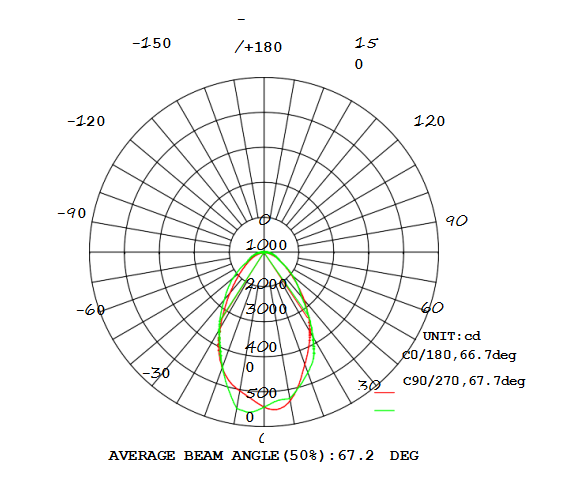

Beam angle:30*90°, 60*110°,90*110°
Single Asymmetric 18°
Double asymmetric 25°
Horizonally Rotating from 0-355 degree

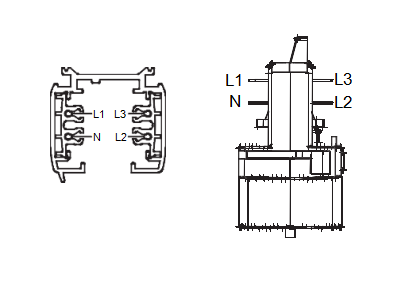

track adaptor, high lumino- Supply voltage in volts: 220-240V
us and high brightness. No
mercury, no radiation.

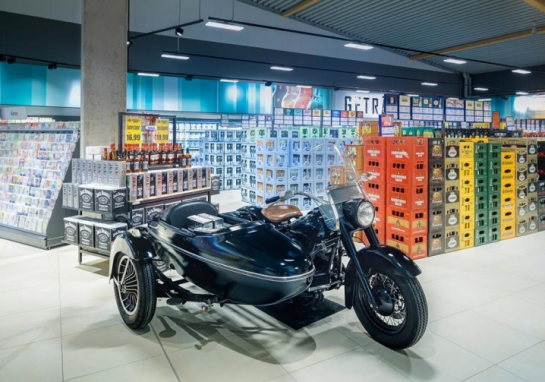

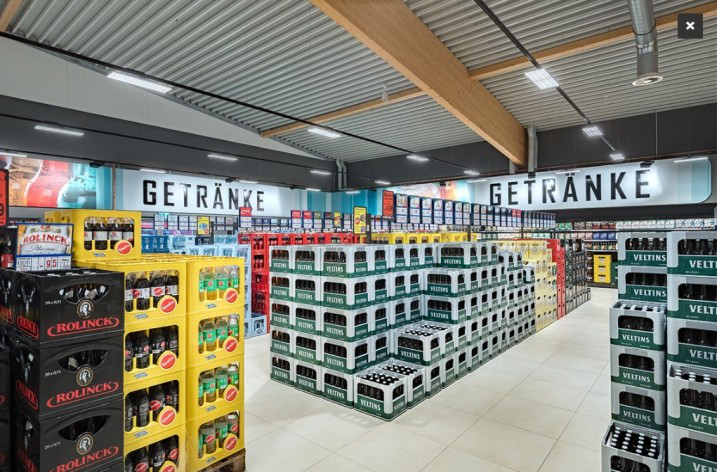

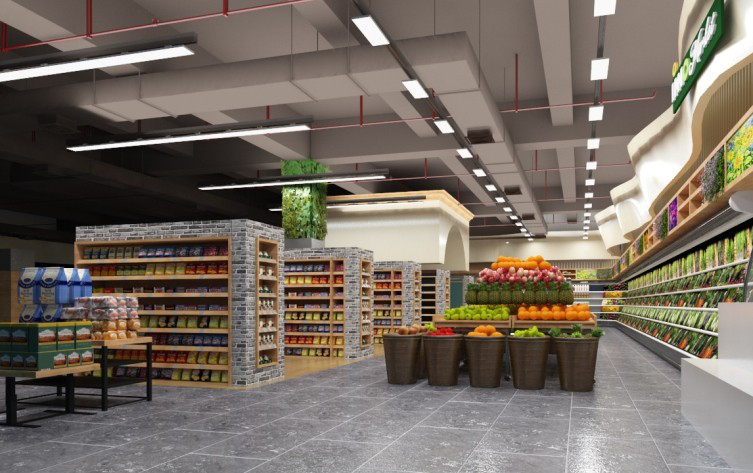

Supermarket, shopping mall,big-box stores,
Light efficiency:135lm/w
IP code:IP20

Download Documentation

Overall

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

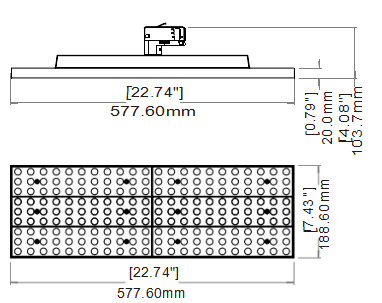

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download
SS-LL-60-90D-50W-C506750Lm
SS-LL-60-90D-75W-C7510010Lm

Highlight
Model
Operating Voltage
Power
Control function
3000k
4000k
5000k




Luminous
flux
CRI
Luminous
flux
CRI
Luminous
flux
CRI
SS-LL-60-90D-75W-DALI
220-240V 100-120V
75W
DALI Dimmable
10011lm
80
10125lm
80
10255lm
80
CCT 830/840/850

CCT 830/840/850
50W
0.12-0.4A
220V 230V

75W
0.12-0.4A
215TD CL 230V

Electrical characteristics

Imax(A)22

19
Outer Carton
628X477X307mm
Pcs/20GP
1000PCS
Qty/CTN
4PCS
Pcs/40GP
2128PCS
N.W./CTN
9.6kg
Pcs/40HQ
2432PCS
G.W./CTN
11.35kg
