Catalog#Type   Project

Prepared ByDate   Comments

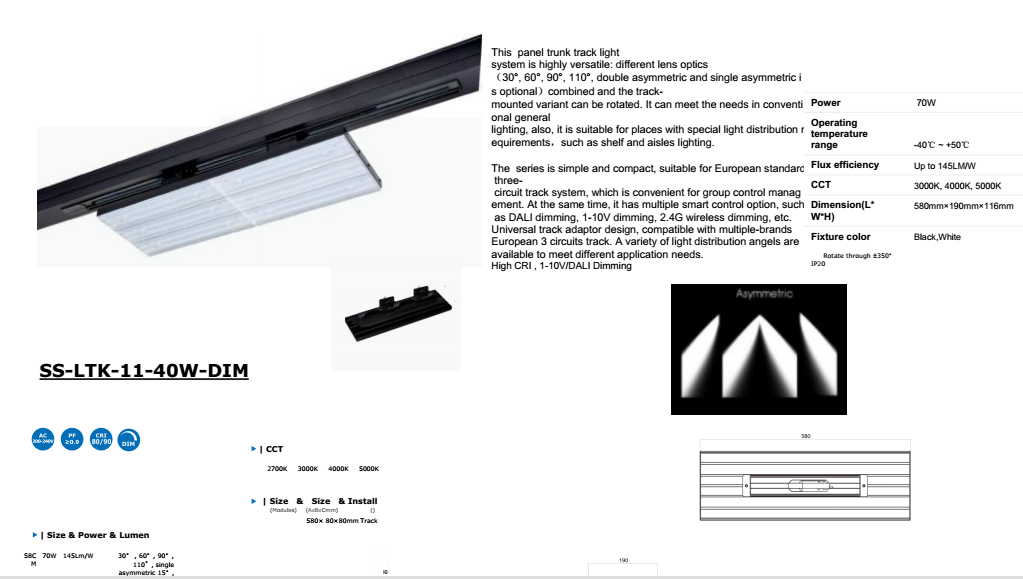

SS-LTK-11-40W-DIM



This  panel trunk track light system is highly versatile: different lens optics（30°, 60°, 90°, 110°, double asymmetric and single asymmetric is optional）combined and the track-mounted variant can be rotated. It can meet the needs in conventional general
lighting, also, it is suitable for places with special light distribution requirements，such as shelf and aisles lighting.

The  series is simple and compact, suitable for European standard three- circuit track system, which is convenient for group control management. At the same time, it has multiple smart control option, such as DALI dimming, 1-10V dimming, 2.4G wireless dimming, etc.
Universal track adaptor design, compatible with multiple-brands European 3 circuits track. A variety of light distribution angels are available to meet different application needs.
High CRI , 1-10V/DALI Dimming
Download Documentation

Overall

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download

Highlight
Power
 70W
Operating temperature range
-40℃ ~ +50℃
Flux efficiency
Up to 145LM/W
CCT
3000K, 4000K, 5000K
Dimension(L*W*H)
580mm×190mm×116mm

Fixture color
Black,White
