Catalog#Type   Project

Prepared ByDate   Comments

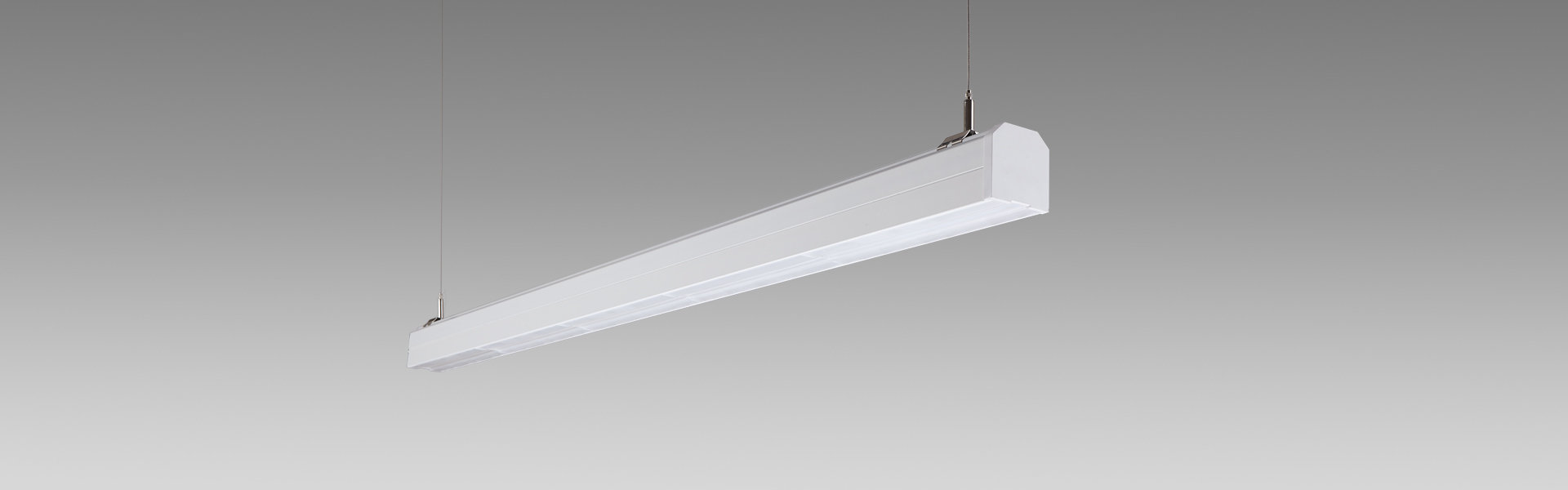

IC-TNK-120-27/40/50W,IC-TNK-150-33/50/65W



 High efficacy of more than 170lm/W
 Variety of beam patterns for different applications.
 Optimal glare control.
 Seamless connection and no light leakage.
Standalone type and continuous row optional.
Compact design and streamlined appearance.
Can be flexibly connected to myriad of shapes.
Modular design and easy installation
Voltage: 200-240V
Supermarket
 Warehouse
 Workshop
·Lumen:
4500lm/6500lm/8000lm@1200mm
5500lm/ 8000lm/10500lm@1500mm
10500lm/ 16000lm/ 21000lm@3000mm
CCT: 3000K, 4000K, 5000K
CRI: >80Ra, >90Ra
UGR: <19 (general lighting)
SDCM: ≤3
Beam Angle: 25o, 60o, 90o, double asymmetric, asymmetric

Download Documentation

Overall

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download

Highlight
Wattage:
27W/ 40W/ 50W@1200mm
33W/ 50W/ 65W@1500mm
65W/ 100W/ 130W@3000mm
Efficacy: 170lm/W
Voltage: 200-240V
THD: <15%
·Size: 1500mm, 3000mm(Length)
Color: White, silver
Finish: Powder coated, anodized
Material: Profile: Extruded aluminum
Cover: PMMA
End Cap: Aluminum alloy
·Lifespan: 60000h (L90, Tc=55 ºC)
Warranty: 8 years
Operating:-35~45 ºC
IP Protection: IP20
IK Protection: IK05
