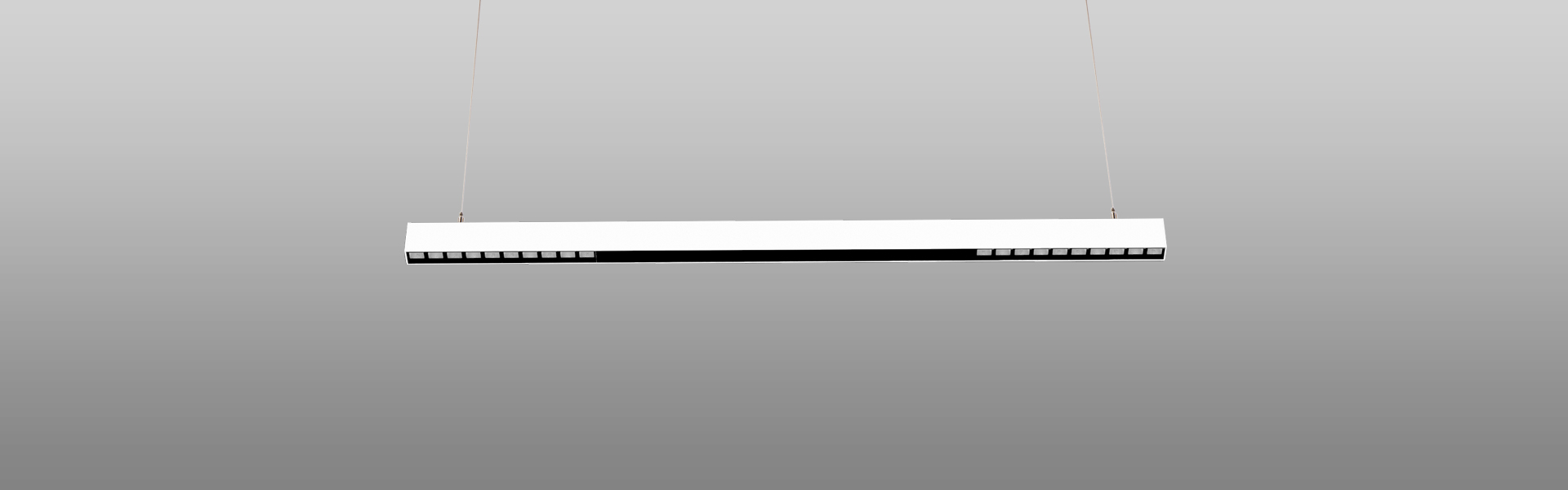

SS-LL-120-24W/35W/34W/48W,SS-LL-160-24W/35W/34W/48W



High light efficiency of more than 130lm/w.
● Optimal glare control,UGR<10.
● Seamless connection and no light leakage.
● Uniform illumination,direct and indirect light.
● Standard one type and continuous row optional.
● Ideal replacement for fluorescent grille lights.
● Comply with EN12464-1 standard.
● No flickering,visual comfort.
● Office
● Education
● Healthcare
● Public
Optical
· 2500lm/3700lm@1200mm
2500lm/3700lm@1600mm
1200lm+2400lm/1667lm+3333lm@1200mm
1200lm+2400lm/1667lm+3333lm@1600mm
CCT: 3000K, 4000K, 5000K
CRI: 80Ra,90Ra
UGR: <10
SDCM: <=3

Download Documentation

Overall

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download

Highlight
· 24W/35W@1200mm
24W/35W@1600mm
34W/48W@1200mm
34W/48W@1600mm
Efficacy: 130lm/W
Voltage: 200-240V
· Size:1200mm/1600mm(Length)
Color: White, Silver, Black
Finish: Powder coated, Anodized
Material: Profile: Extruded aluminum
Optic: PMMA
· Lifespan: 60000h(L90, Tc=55℃)
Warranty: 8 years
Operating: -35~45 ºC
IP Protection: IP20
IK Protection: IK02
