SS-LL-11-40W/60W/80W

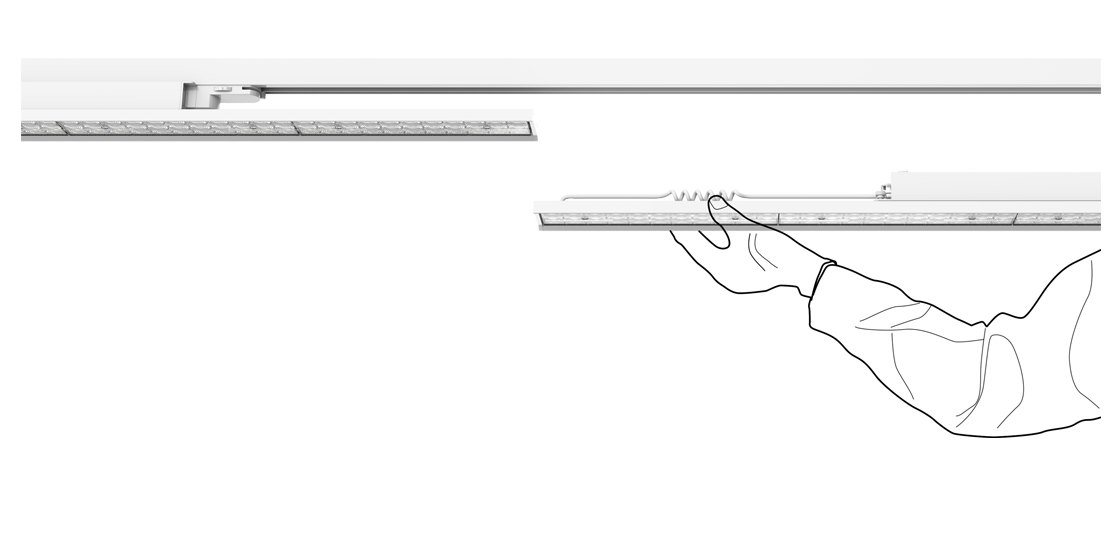

The series is a brand new seamless linear lighting system, which is totally different from the traditional LED trunking system light. It adopts European standard 3 circuit commercial track rail instead of trunking rail, and customers can freely choose different track rail brands to be more competitive in project bidding. With exposed track adaptor design, It is very easy to install and operate, and have much lower costs of installation and maintenance. Besides, The system is more flexible with the using of universal track rail, and can easily integrate track lights, emergency lights, signs lights, track cameras, etc. The total cost of ownership(TCO: total cost of purchasing lamps, installation, commissioning, maintenance, etc.)is also greatly reduced relative to the trunking system light.
Download Documentation

Overall

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

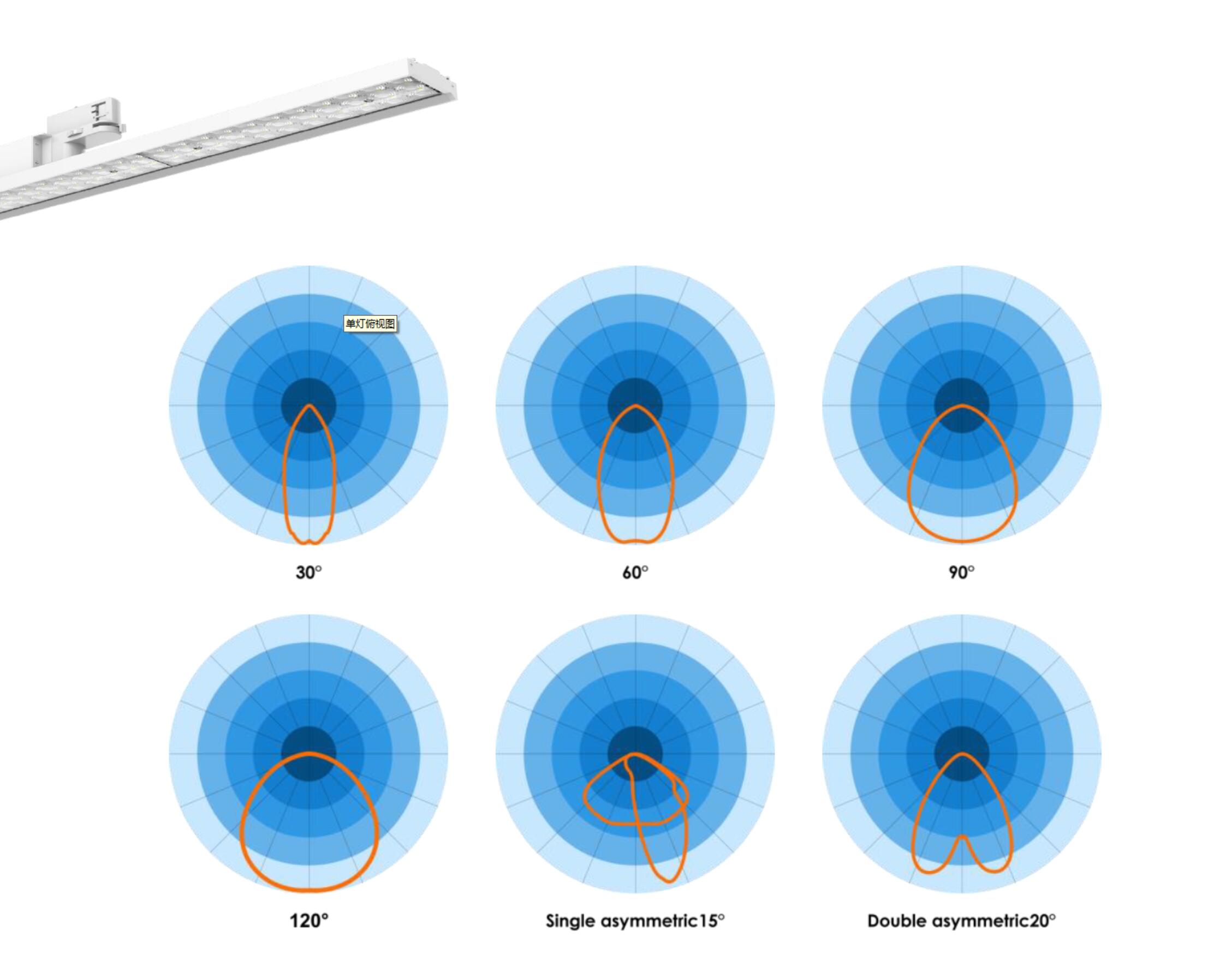

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download

Highlight
Power
40W,60W, 80W, 40W(dimming)
Input voltage
AC220-240V / AC100-277V
Operating temperature range
-40℃ ~ +50℃
Power frequency
50/60 HZ
Flux efficiency
Up to 120LM/W
Luminous flux
Up to 8400LM
CCT
3000K, 4000K, 5000K
Ra
>80
Dimension(L*W*H)
1160× 80×80mm
Net weight(@80W)
2.5kg
Fixture color
Black,White
Warranty
5 years
