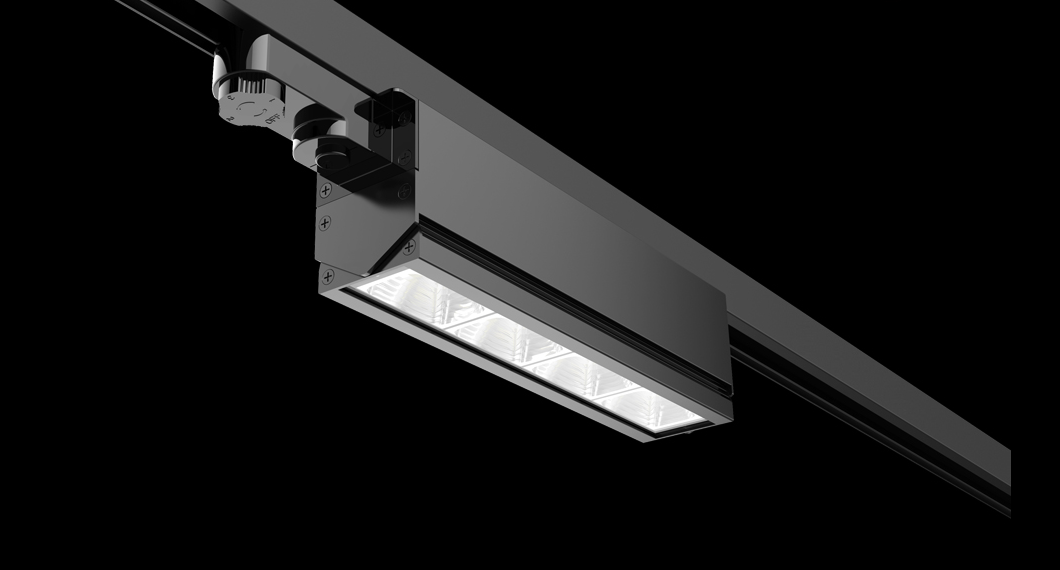

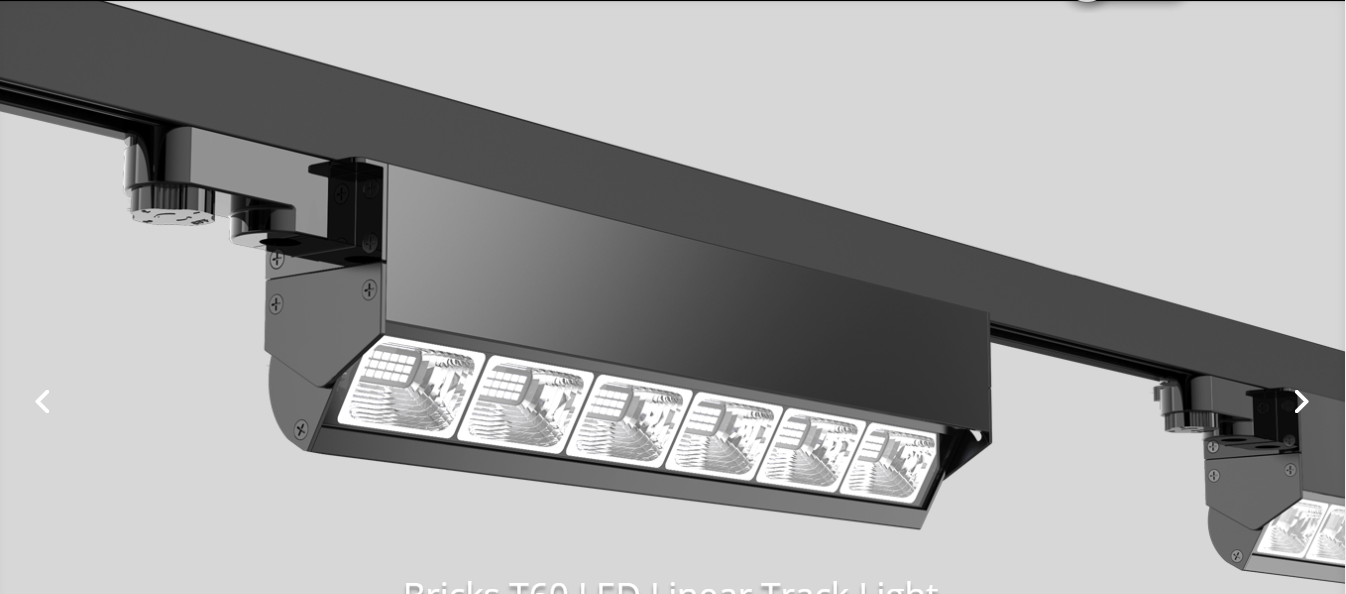

SS-LL-50-27W/36W/54W



· Compatible with the European standard 3 circuit track, convenient to group control luminaires.

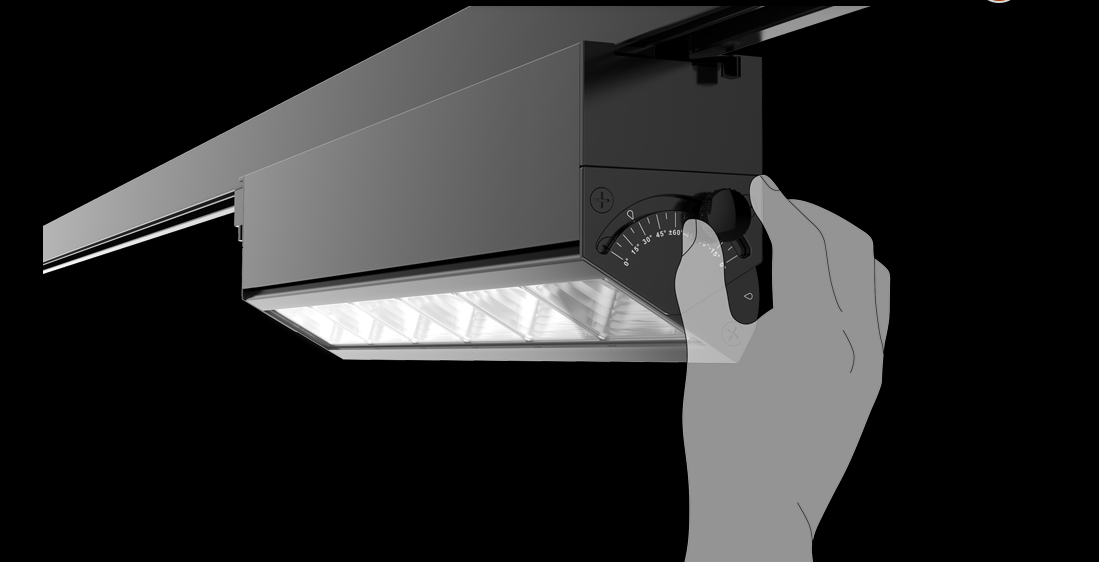

· Light panel can tilt through ±60°.
· Flexible: Bricks system can integrate with spot light, emergency light, sign light, etc.
· Specially developed optic design for uniform, rectangle illumination without dark dots.
· Intelligent design: Dali, 1-10V dimming, daylight sensor, motion sensor are available.
· Proposal application: Clothing store, supermarket.
Download Documentation

Overall

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download

Highlight
Power
27W, 36W, 54W
Operating temperature range
-40℃ ~ +50℃
Flux efficiency
Up to 140LM/W
CCT
3000K, 4000K, 5000K
Dimension(L*W*H)
500× 60×105mm
Fixture color
Black,White
