Catalog#Type   Project

Prepared ByDate   Comments

SS-2D-280,90mm-SMD2835-60P,90P,80P,100P-9W,15W,12W,18W



Emergency 2D LED light with microwave induction function:
◆Use high temperature resistant type nickel metal hydride (Ni - MH) high quality charge and discharge more than 500 times;
◆Adopts intelligent control switch power supply circuit,Light will turn on automatically when power Outage,Automatic charging when power is restored,With internal overcharge, over discharge protection circuit, international routes, trichromatic lamp, detection switch;

Download Documentation

Overall

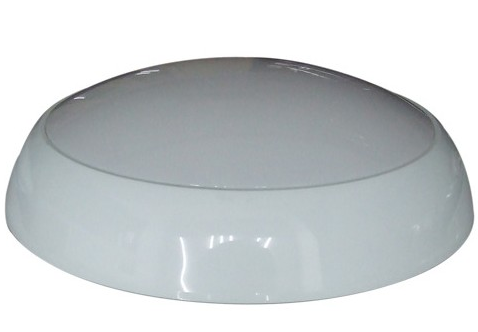

◆Novel appearance and pur white shell, high-grade generous,adopts fireproof plastic case PC Milky white lampshade not dazzling, light even;
Equipped with a unique installation base, convenient installation;
◆Emergency Function:Normal AC mains supply, the inverter allows emergency lighting battery pack is charging
 \ standby status;;When the earthquake, attacks, explosions and other accidents or other emergencies caused by a sudden interruption of AC mains,
 the conversion time is 1 second,The inverter then converts DC emergency lighting battery pack continues to supply,
Ensure lighting lamps and lanterns and safety. green, yellow three LED lamp beads show normal main power,
charging, fault status, the battery charge saturation, automatically maintain power status, compensation self-discharge, charge flow 120mAh donate,
Maintenance of battery performance and service life. Matching different capacity of the battery, can be up to five hours of emergency lighting time,
 adapt to the needs of different occasions. In the 25-50 + use temperature environment.
◆Induction function:When normal AC mains supply, the sensor automatically emit electromagnetic waves,
When there is moving object into the microwave induction range,
Lamps is automatically induction work at full capacity,When a moving object left after induction range 30 s,
 lamps  is automatically put out,In order to achieve the best effect of energy saving.induction distance
3-8M(according to the strength of the induction
Mechanical Characteristics:
Working temperature: 55 degrees Celsius at room temperature 25 degree Celsius
Ambient temperature: -20~50 degrees Celsius

I

nput Voltage:                       AC85-265V~50/60Hz
Clor temperature :                3000+200K;4000+250K;6000+300K

Power factor :                       ≥0.85

Color rendering index:          Ra≥80

Materials:                           PC fire protection shell +
                                         PC milky white lamp (transparent lampshade)

Working temperature:          Minus 30_+40(℃)

Life time :                           35000h

Efficiency :                         ≥85%

Emergency output:             30%(4.5 W) about 5 hours

Battery indicator light:         Red: charging; Green: fully charged;
                                        Yellow: battery fault or disconnected

Emergency time:                can customize

Standard :                         EMC & ROHS

IP Standard:                      IP54



Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download
SS-2D-280,90mm-SMD2835-60P-9W2835 60pcs9WWW,NW,CW650Lm280mm*80mm 160D AC85-265V~50/60Hz IP44
SS-2D-280,90mm-SMD2835-90P-15W2835 90pcs15WWW,NW,CW1080Lm280mm*80mm 160D AC85-265V~50/60Hz IP44
SS-2D-280,90mm-SMD2835-80P-12W2835 80pcs12WWW,NW,CW860Lm280mm*80mm 160D AC85-265V~50/60Hz IP44
SS-2D-280,90mm-SMD2835-100P-18W2835 100pcs18WWW,NW,CW1250Lm280mm*80mm 160D AC85-265V~50/60Hz IP44

Highlight

Model

Size(MM)

Color box size(mm)

Net weightg

Gross weight(Kg

Out packing size(CM)

SS-2D-280,90mm-SMD2835-60P-9W



Φ50*53

300*300*100

1250

6

415*315*315mm/4pcs

SS-2D-280,90mm-SMD2835-90P-15W



Φ50*53

340*340*110

1520

7

455*365*365mm/4pcs

SS-2D-280,90mm-SMD2835-80P-12W



Φ50*53

300*300*100

1250

7

415*315*315mm/4pcs

SS-2D-280,90mm-SMD2835-100P-18W



Φ50*53

340*340*110

1520

7

455*365*365mm/4pcs


Only to be installed with qualified electrician
Kindly notice the power is off when installation
Supplied with LED and power supply
