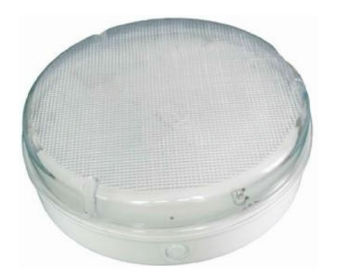

ICL-OYL-283,79mm-SMD3528-240P-12W-S,MS,EM,EMMS-IP65



Overall

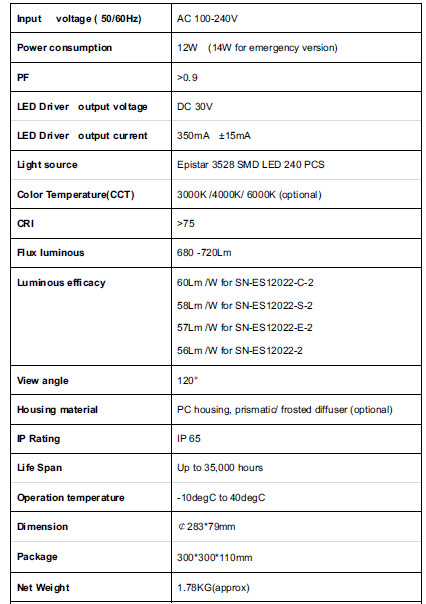

Specifications

Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterpriif

(IP)

Download

Highlight

Input: AC100-240V 50/60Hz

Light Source: SMD 3528 240Pcs

PF>0.9

LED Driver Output: DC 30V

LED Driver output current: 350mA±25mA

Conversion Efficiency>85%

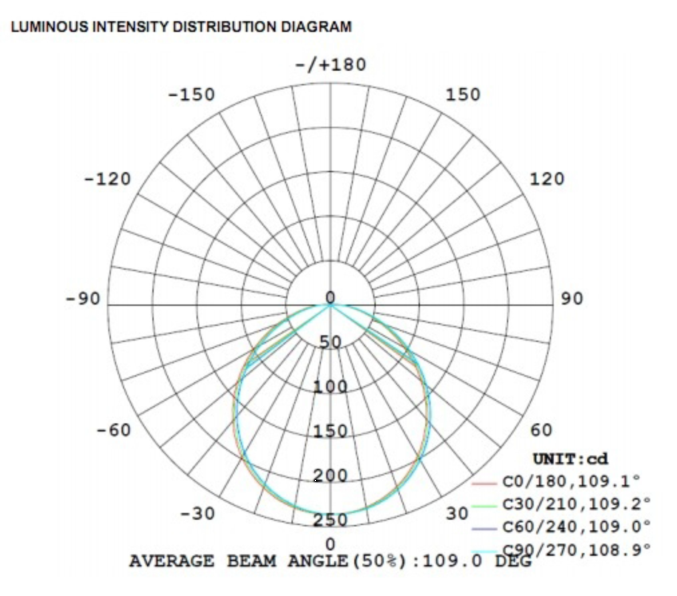

Beam angle: 120°

Color Rendering Index: CRI>75/80Ra

Luminous Efficacy: 82Lm/W for Sensor version

67.5Lm/W for Emergency version 65Lm/W for Sensor+ Emergency Version

Mechanical Characteristics:

Working temperature: 55 degrees Celsius at room temperature 25 degree Celsius

Ambient temperature: -20~50 degrees Celsius

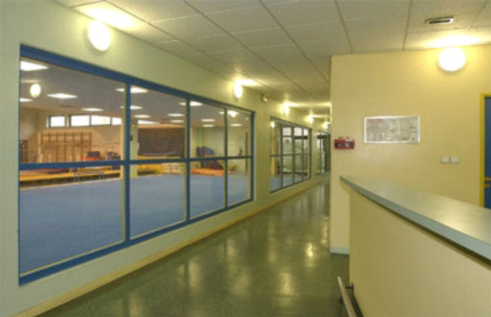

1. Replacement for traditional recessed lights

2. Ceiling light

3. Shopping center

4. Walkway

5. Hotel

6. Restaurant

7. Entertainment places

8. Display case

9. Museum

10. Household

11. Entertainment places

12. Residential

13.Corridor
